USB3.0 NGFF PCI-E M-KEY SSD

Current position :Products > USB3.0 NGFF PCI-E M-KEY SSD

< >

LM902

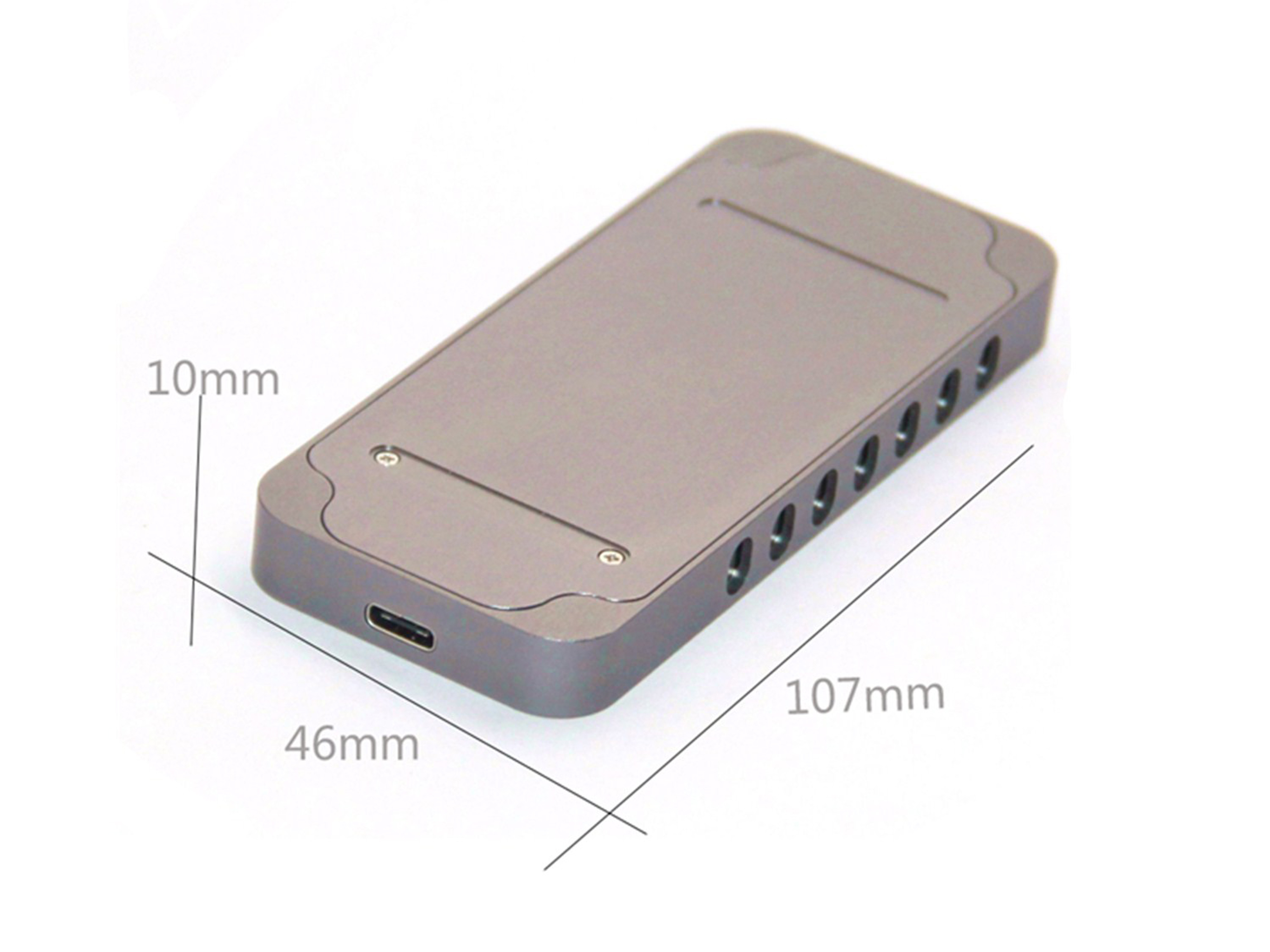

Product Size:

Length: 107mm;

Width: 46mm;

Height: 10mm;

Material: Aluminum Alloy;

Agreement: NVMe;

Interface: Type-C;

High speed: 10Gbps;

Built-in Interface:M-Key M.2(Does not support SATA protocol M. 2 hard disk).

External Interface:Type-C.

Theoretical Speed:10Gbps.

Support System:WIN7/8/10, Linux, Mac.

Advantage:

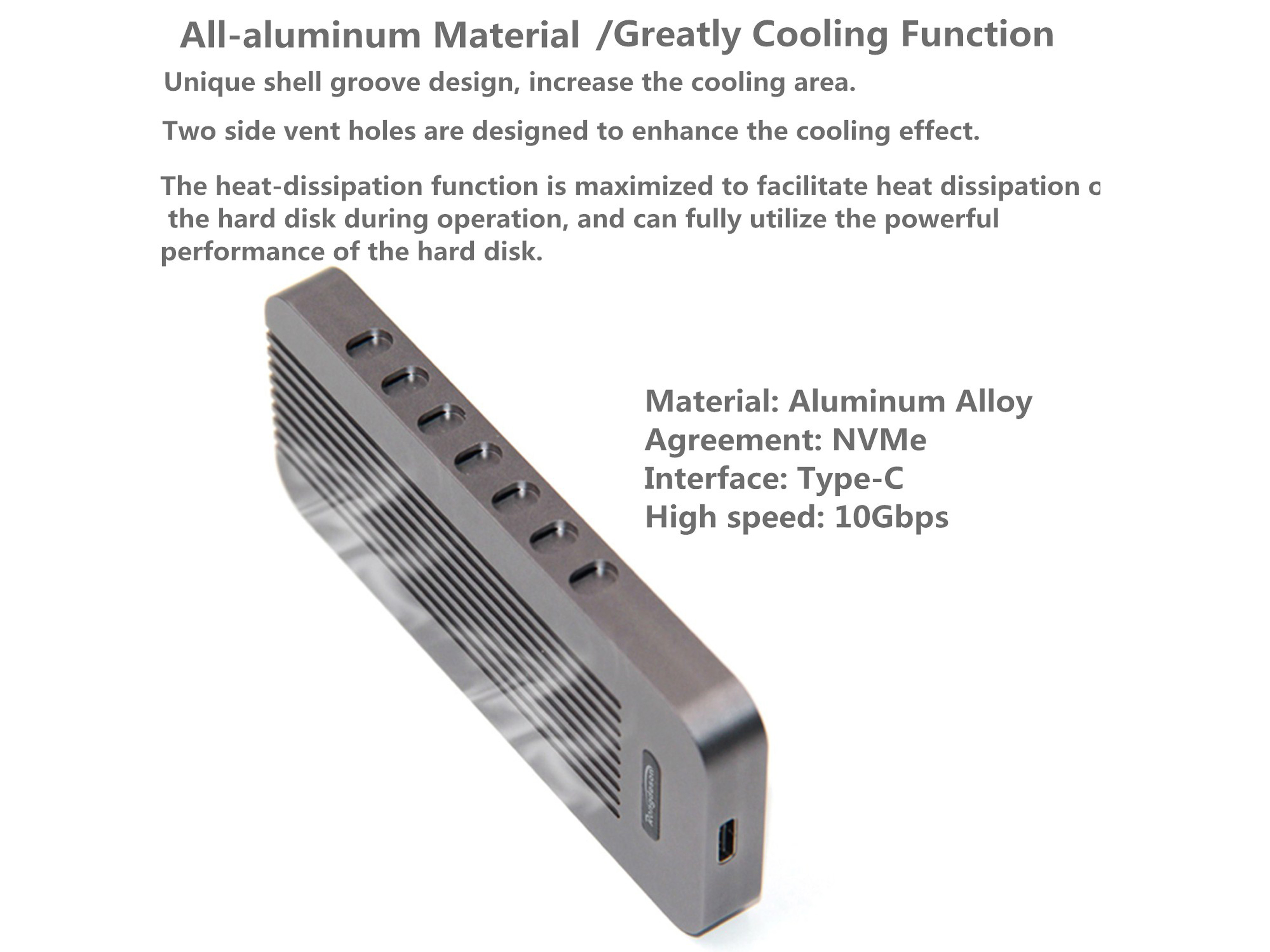

All-aluminum material, cooling function is more stronger.

Unique shell groove design, increase the cooling area.

Two side vent holes are designed to enhance the cooling effect.

The heat-dissipation function is maximized to facilitate heat dissipation of the hard disk during operation, and can fully utilize the powerful performance of the hard disk.

NVMe Advantages:

1. Several times improvement in performance.

2. Can greatly reduce the delay.

3. Greatly reduce power consumption in working condition.

4. SSD's IOPS capability will also be greatly improved.

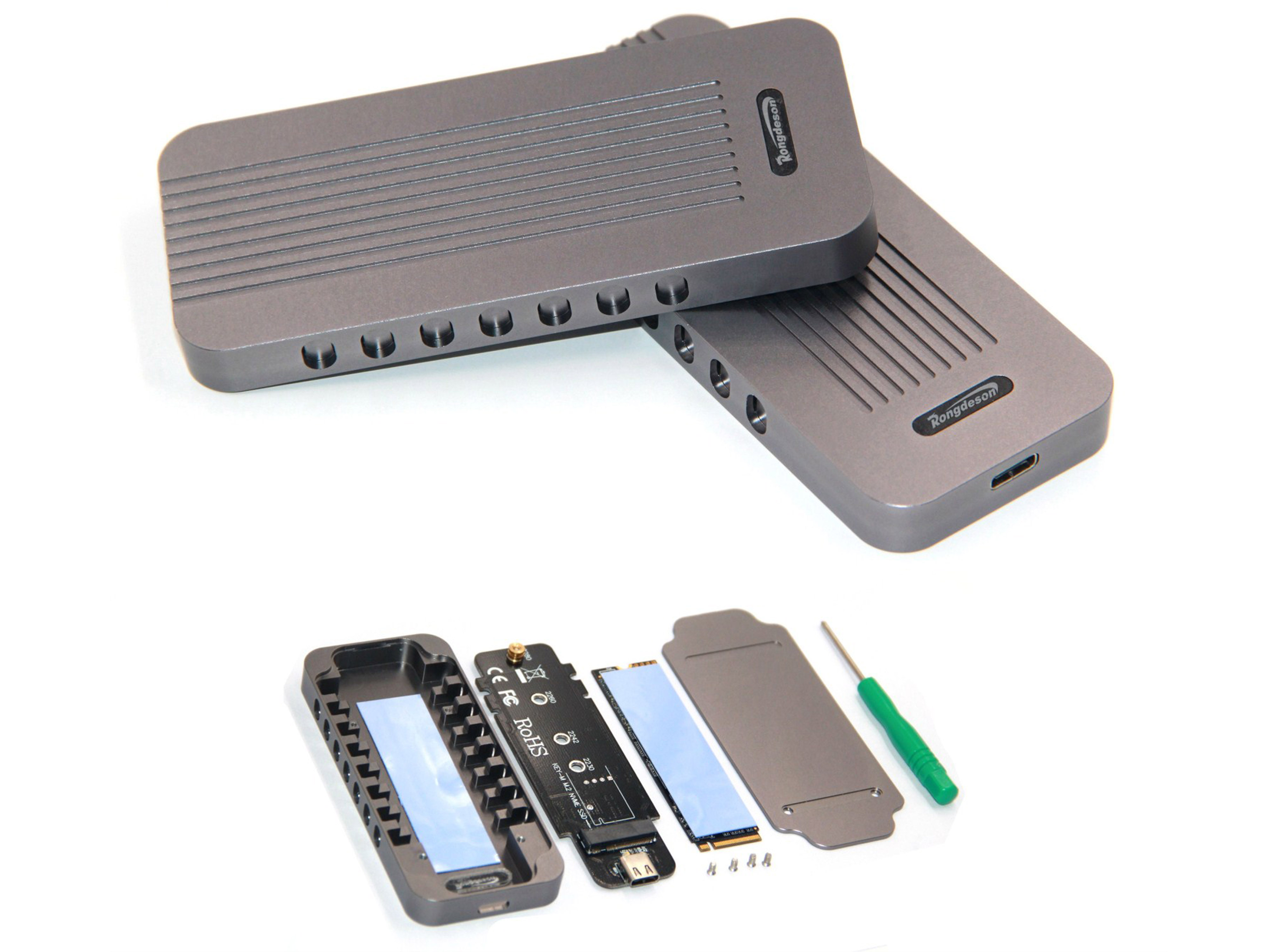

Product Accessories List:

NVMe Enclosure X 1pcs

Type-A To Type-C Cable X 1pcs

Thermal Silica Film X 1pcs

Anti-slip Gasket X 1pcs

Phillips Screwdriver X 1pcs

Instructions X 1pcs

After-sales Card / Happy Card X 1pcs

Installation package

Hotline
0755-21501606

Product detail

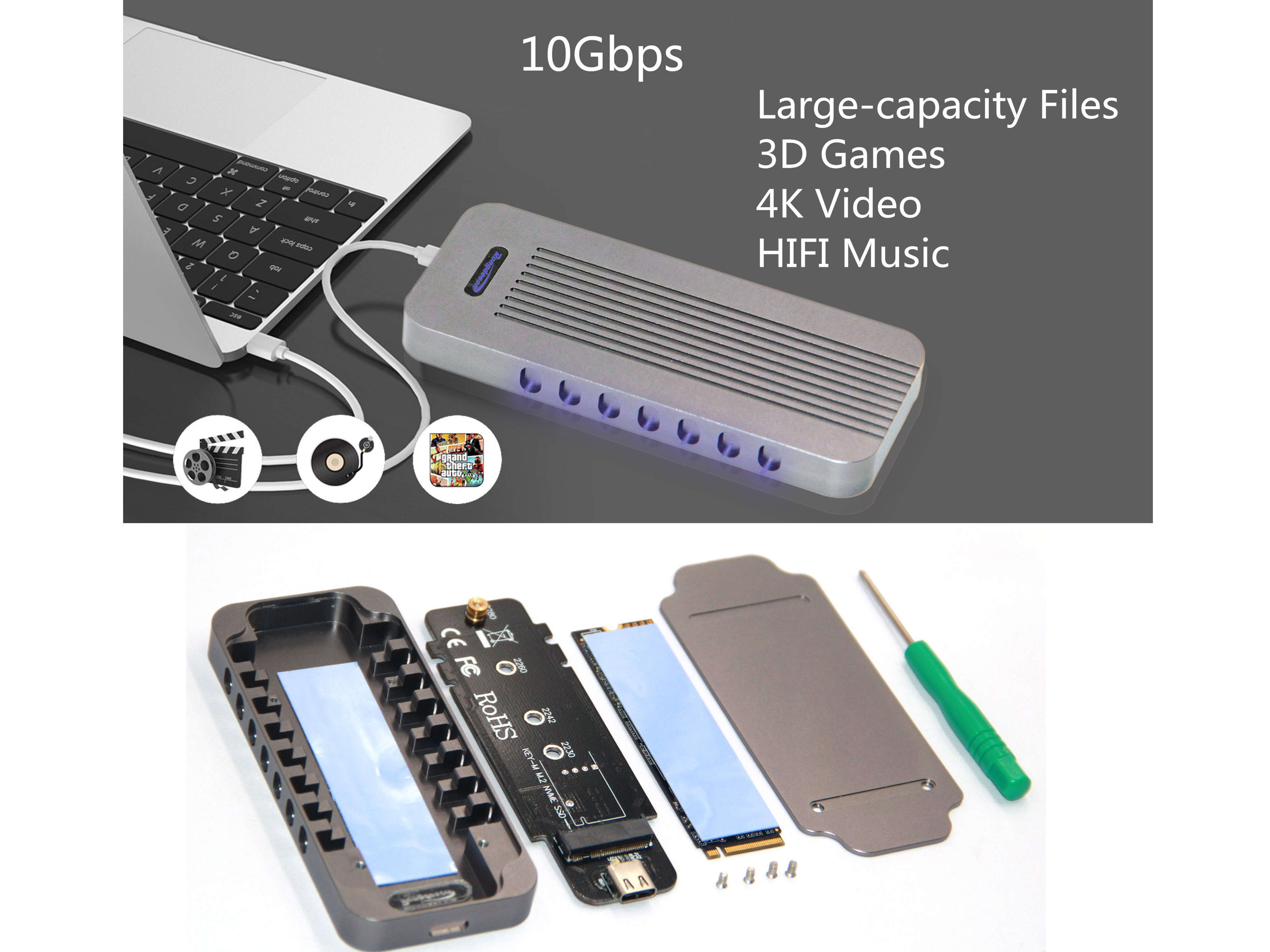

USB 3.1 Port support the speed of data transmission up to 10Gbps,give you a steady and efficient data transfer. Downwards compatible with USB3.0.

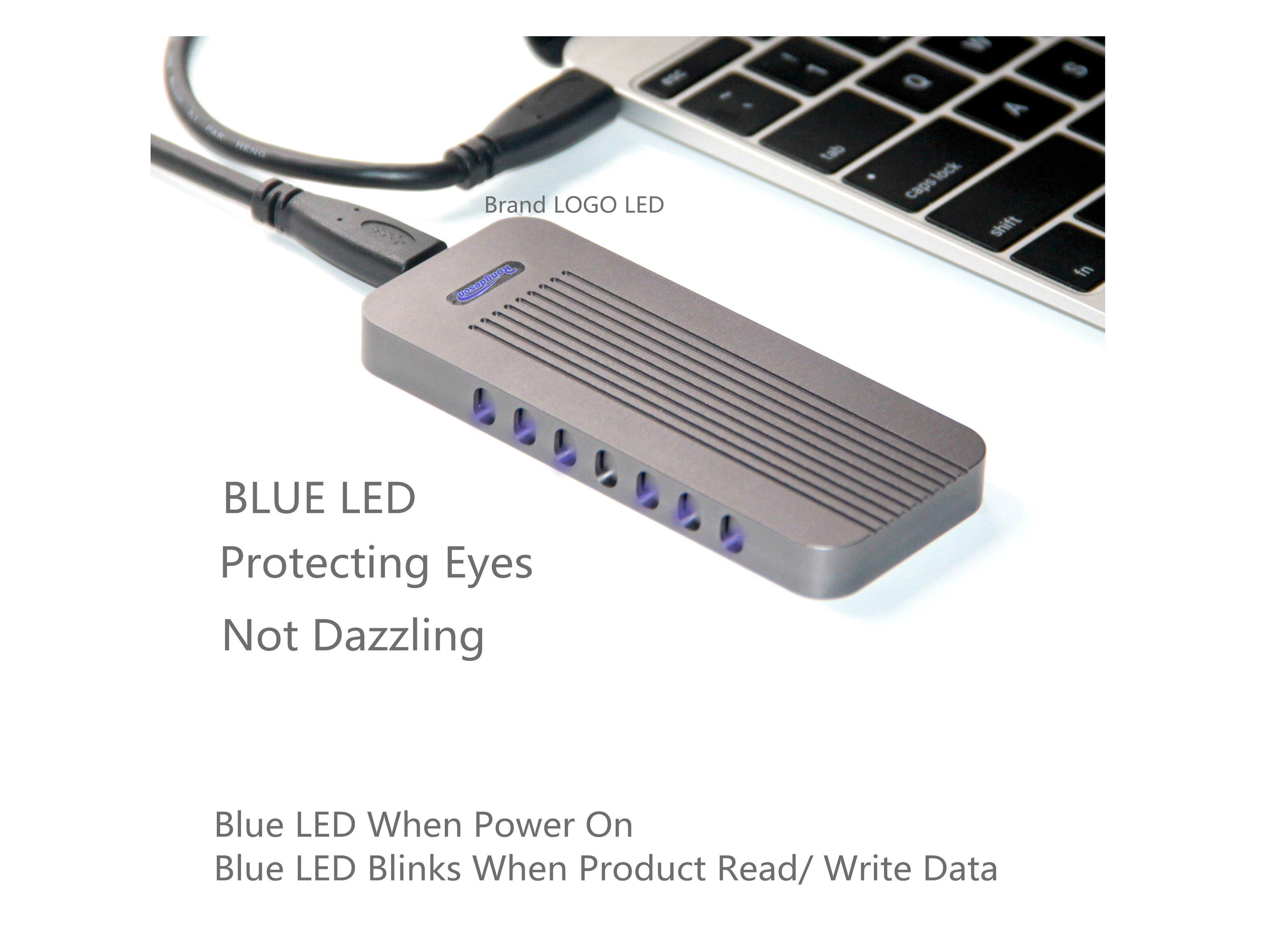

Easy Setup, Hot-swappable, Plug and Play, No Driver required. With LED indicator, easy to control SSD working status. A several-times increase in performance can significantly reduce latency. Support Samsung 950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM961.

Aluminum alloy sandblasted shell, comfortable and beautiful. Professional Aluminum Case; Ultra slim design for a modern look. Portable yet durable, ideal for traveling. Vents Design for Heat Dissipation; Greatly reduce power consumption, large heat dissipation area and heat dissipation stronger. Provides heat dissipation and data saver for your systems.

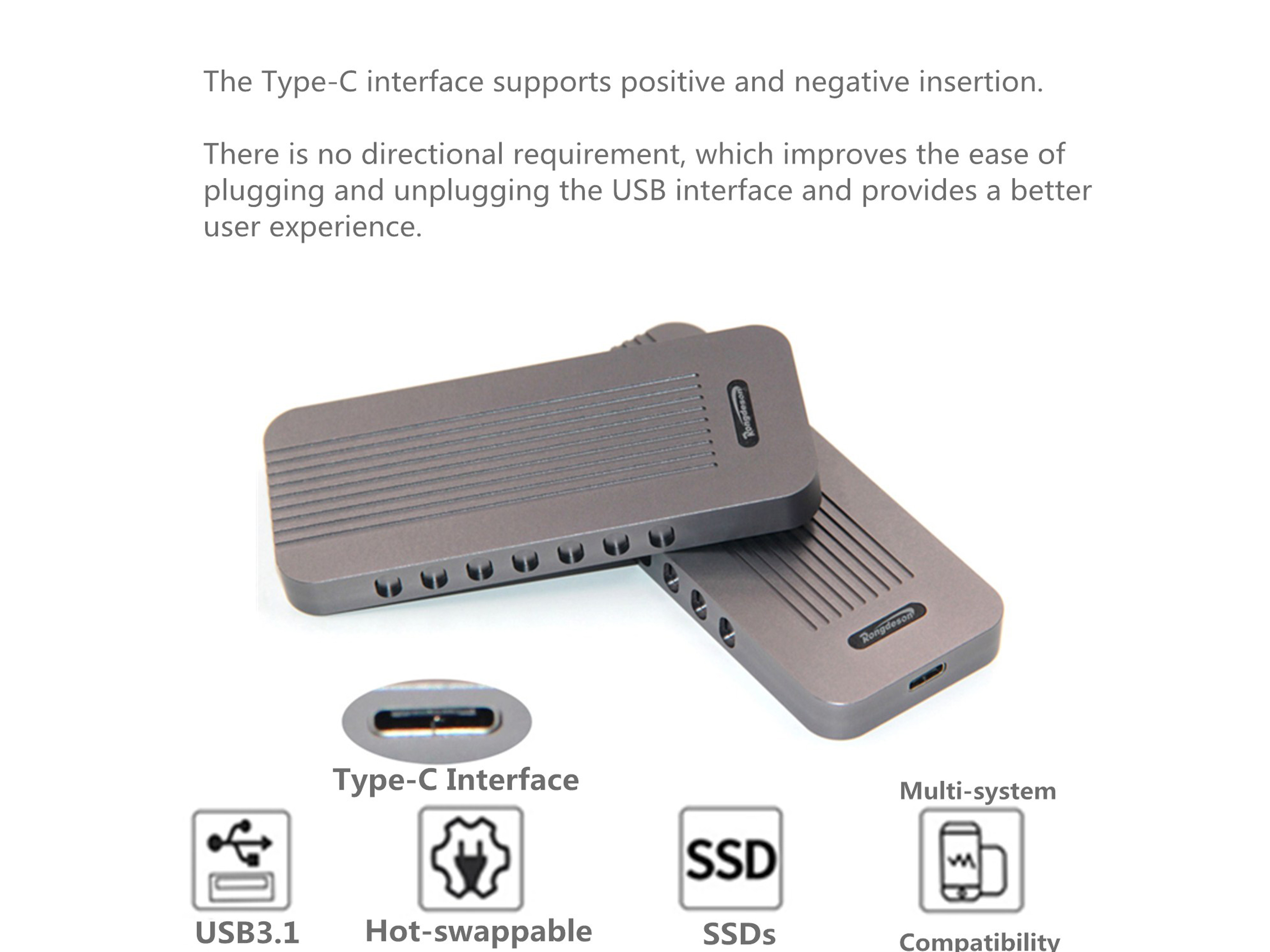

The Type-C interface supports positive and negative insertion. There is no directional
requirement, which improves the ease of plugging and unplugging the USB interface and provides a better user experience.

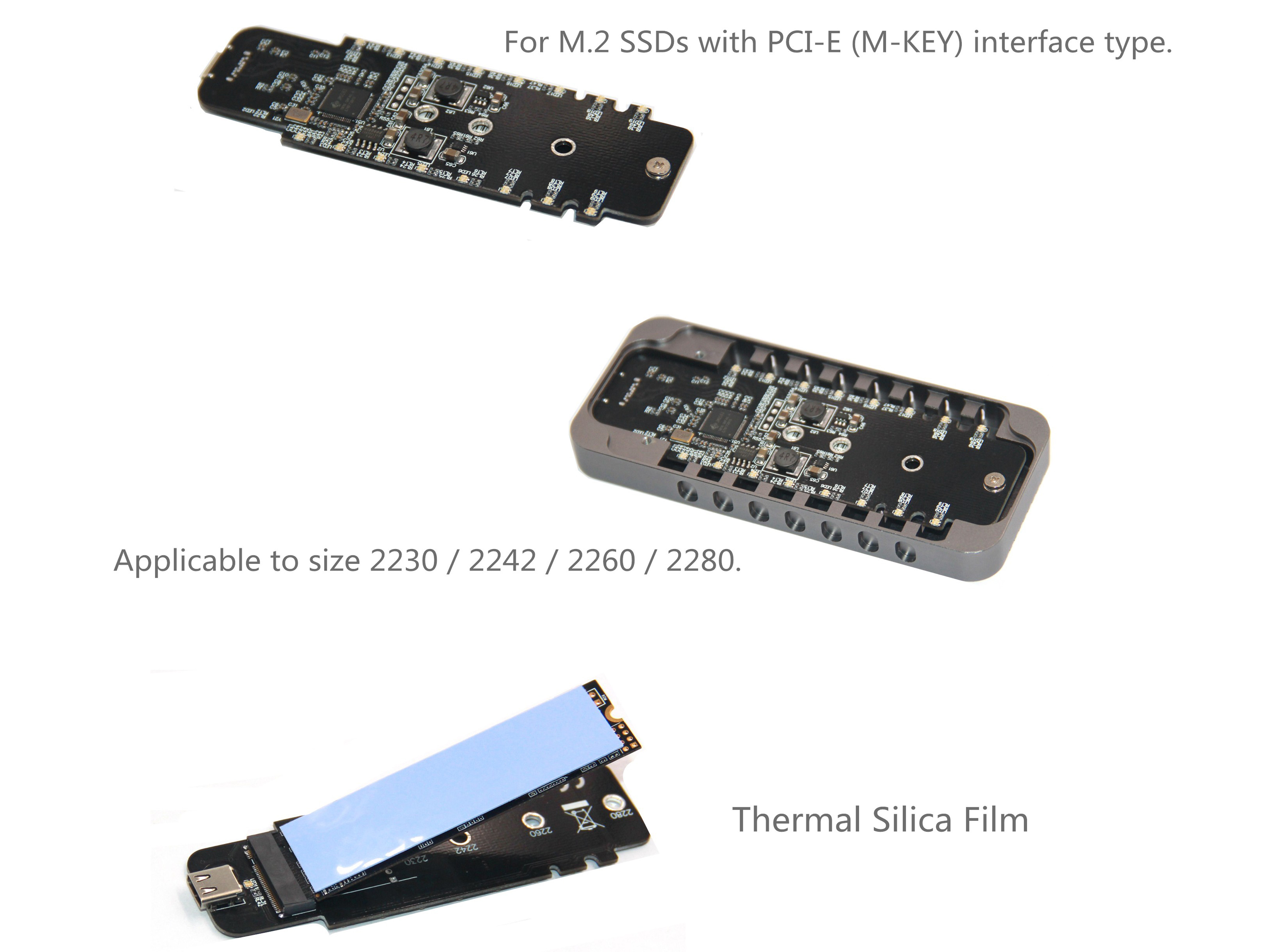

Only for M-Key M.2 SSD (PCI-E NVMe-based), doesn't support B-Key SSD(SATA-based) and M-Key M.2 SSD(PCI-E AHCI-based), applicable to size 2230 / 2242 / 2260 / 2280
